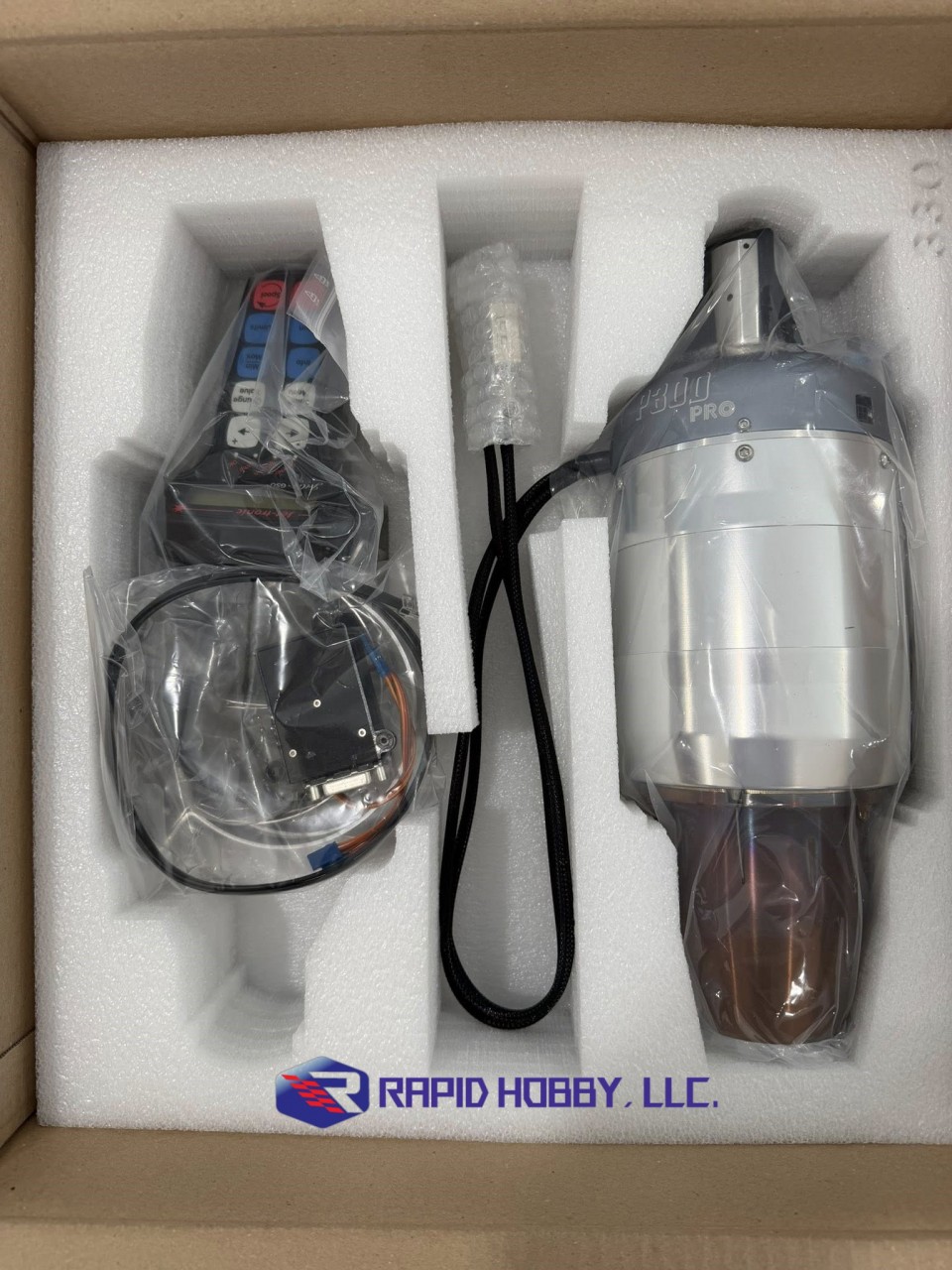

Available for sale New JetCat P300-PRO-GL Turbine Engine with affordable price US $3175.00. Only limited stock, so contact us immediately.


The JetCat PRO Engines offer maximum integration and installation. All system equipment required for turbine operation is fully integrated under the turbine hood. Apart from the supply battery, the fuel tank and the control signals, no further external subsystems are required! The control signals are output on a data cable terminated with a 15-pin SUB-D connector. Power is optionally supplied via the power cable with XT60 plug for direct battery connection.

JetCat P300-PRO Engines Features:

- ECU (electronic control unit)
- Integrated brushless fuel pump
- Fuel and kerosene start valves
- Fuel filter
- Kerosene starter
- Barometric height / pressure sensor
- 4-pole Molex extension plug (e.g. for smoke pumps / fuel pump)
- Vent opening with integrated one-way valve (e.g. for pressurizing the fuel system)

Power supply:
Over 3 cells LiPo battery / XT60 connection / capacity 3000mAh or higher

Data connector (section):

Over 15-pin SUB-D (male) there are the following control options:

- 1x PowerOn control signal
- 2x PWM input channels (e.g. for RC remote control; THR / AUX)
- 2x independent RS232 interfaces for computer remote control and / or interconnection of several turbines
- 1x Analog voltage regulation / sensor input
- 1x JetCat bus interface, e.g. for connection of GSU and / or other JetCat accessories (LCU / flow sensor / BMS system etc.) CAN bus interface for control and data reporting

Generator Version PRO-GL:

These versions consist of a brushless and non-contact starter/generator system. The generator is "soft coupled", i.e. it rotates at a lower speed than the turbine shaft itself (patent pending). A built-in and integrated DC / DC converter with additional charge control enables buffering / recharging of the turbine battery. The charging system is able to supply charging energy to the Engine battery at idling speed. The electrical power of this charging system is approx. 85W. The "soft" coupling of the generator limits the power output.

Specifications:

Pressure ratio : 3,55
Mass flow (kg/s) : 0,5
Consumption Full load (ml/min) : 980
Consumption idle (ml/min) : 179
Weight [g] : 2730
Dimensions of the diameter (mm) : 132
Length (mm) : 381
Exhaust gas temperature (°C) : 480-750
Idle speed (1/min) : 35000
Max rpm (1/min) : 105000
Thrust at idle (N) : 14
Thrust @ maxRpm (N) : 300
Exhaust gas velocity (km/h) : 2160
Exhaust gas power output (kW) : 90
SFC @ maxRpm (kg/Nh) : 0,157
