Available for sale New JetCat SPT5 Dual Exhaust Turboprop Engine with affordable price US $2699.00. Only limited stock, so contact us immediately.


Propeller-driven models do not have to do without the advantages of turbine technology. The JetCat SPT turboprop engines have high power reserves in high-tech guise.
The basic design and function of the engines are similar to those used in man-bearing aviation. The principle is easy to understand. It is only necessary to convert the high power of the engine into usable shaft power in a suitable way. However, this is not easily possible at the very high speeds. The necessary reduction takes place in 2 stages.
Once in a gas ratio, then through a gear transmission. This means that the gas jet of the so-called core engine drives a turbine wheel in operation, which sits on a second shaft. This second shaft is mechanically absolutely independent of the rotor of the basic engine and receives its drive power only from the kinetic energy of the exhaust gas jet. The second shaft drives directly into a gear suitable for high speeds, which reduces the speed to suitable propeller speeds.
Also completely new is the electronic control which processes and regulates both the speed of the primary and secondary shaft. The pilot can fully concentrate on flying, the complex engine management is fully electronic.

Propeller Size:

24 x 12 : 3 blade
24 x 14 : 3 blade
26 x 10 : 3 blade
28 x 12 : 2 blade

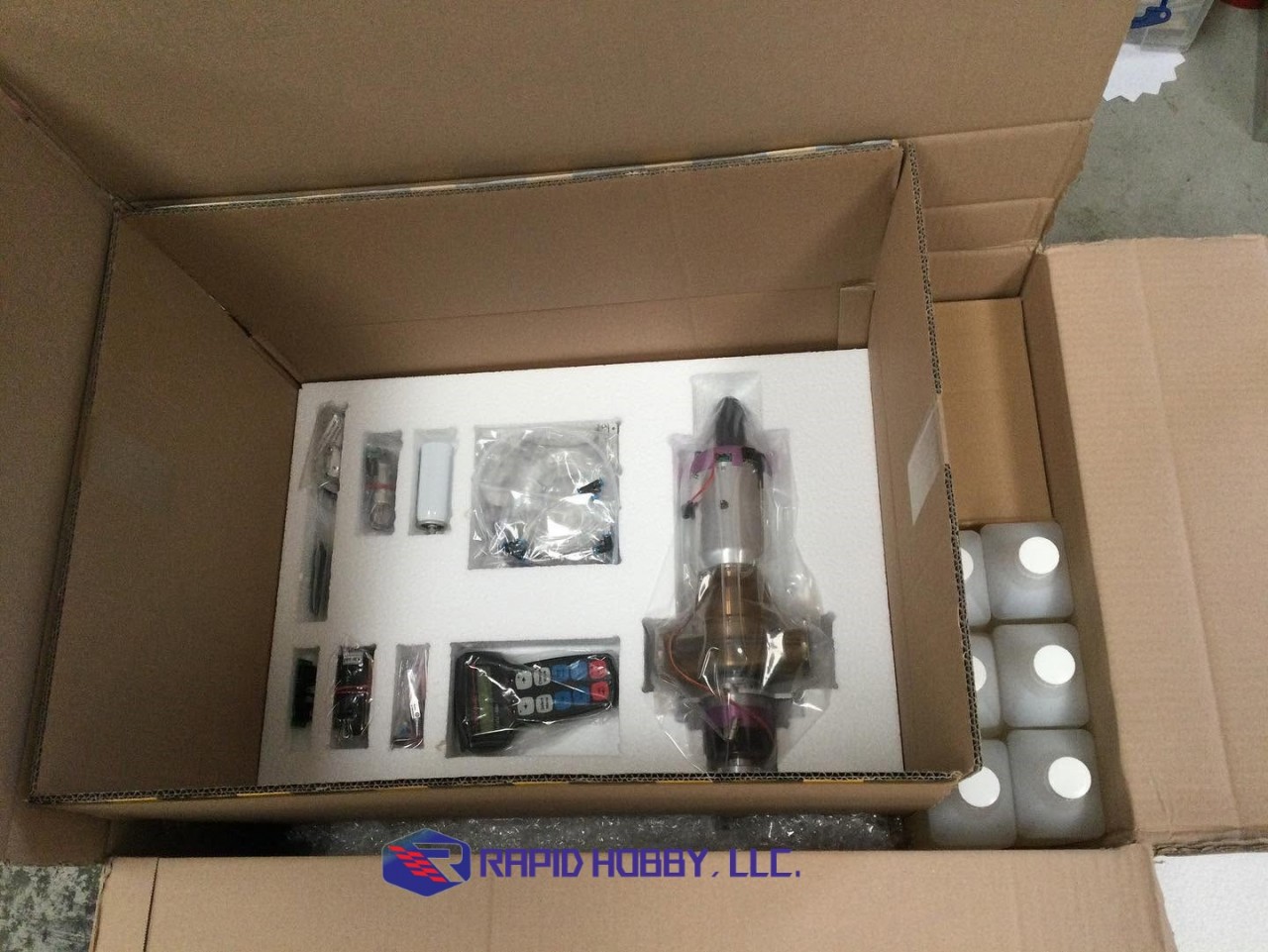

JetCat SPT5 turbo prop complete with starter includes:

- Jet-tronic ECU (fuel control electronics)
- GSU (Display and Programmer)
- LED I/O board
- Miniature fuel pump
- Electronic starting gas valve
- Electronic Fuel valve
- Fuel tubing, tubing connector set, filters, and cable set
- 2 cell, 3800mA LiPoly battery pack
- Starting gas tank
- Turbine mounting clamp and front mounting flange included
- Both shafts are electronically monitored and controlled
- Drive exhibits very low vibrations
- Compact, high efficiency planetary drive system
- Low maintenance lubrication system Integrated cooling fan propeller
- Detailed instruction manual

Specifications:

- Thrust : 55 lbs with 27" prop at 7,0000 RPM
- Weight : 4.9 LB, incl. starter ( 2200 gr)
- Length : 15.25 inches, ( 360 mm )
- Turbine RPM Range : 50,000 - 175,000
- Propeller RPM Range : 1500 - 7000 RPM
- Exhaust gas temp. : 400°C -690°C
- Fuel consumption : 8 oz per/min at full power (180-220 ml/min.)
- Fuel : Jet A1, 1-K kerosene
- Lubrication : approximately 5% synthetic turbine oil in the fuel
- Maintenance interval : 25 hours
